Can Vision-Language Models Reliably Extract Equipment Tags from P&IDs?

Author: Rosary Labs Team

Date: 4th January 2026

Summary

We experimented with five state-of-the-art Vision Language Models to extract equipment tags from Piping and Instrumentation Diagrams (P&IDs). Our findings revealed varying levels of accuracy, hallucination tendencies, and practical limitations when using VLMs for equipment tag extraction purposes.

How did it all started?

We are curious with Vision Language Models (VLMs) generic capability to extract equipment tags from Piping & Instrumentation Diagram (P&ID), specifically their accuracy, and so we tested a few VLMs, such as ChatGPT 5.2, Claude Opus 4.5, Gemini 3 Pro Preview, GLM 4.6v and Qwen3 235B.

Experiment Setup

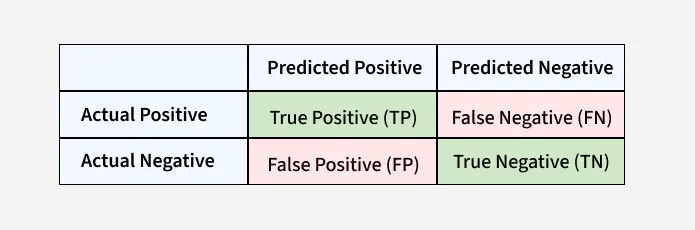

To ensure reliable comparison, we created a ground-truth dataset from manual extractions, which we used to act as the accuracy benchmark of VLM-generated results.

Here's the P&ID diagram used:

Ground Truth Dataset

Manually extracted by an instrumentation engineer from the P&ID diagram:

Sensors (57)

TAH10X, XA10X, XR10X, HS10X, ZI10X, LIR100, LAL100, LAH100, PIR100, LAL101, LAH102, PIR101, FIR100, PAL101, PAH101, ZA104, FI100, TI10X, XA10X, XR10X, HS10X, ZI10X, LI100, PIT100, LI101, LI102, PIT101, FIT100, ZI104, HS10X, YLAR, YLG, LCP100, OIT10X, PIT101, FIT100, PI101, LIT100, LE100, LS101, LS102, ZS104, PIT100, FIR101, FIA101, FIT101, PAH200A, PAL200B, PIR200C, PI200, PIT200, PDIT201, PDI201, PDIR201B, PDAH201A, PI101

Valves (32)

V-101, V-102, V-103, V-104, V-105, V-106, V-107, V-108, V-109, V-110, V-111, V-112, V-113, V-114, V-117, V-201, V-202, V-203, V-204, V-205, V-206, V-208, V-209, V-210, V-212, V-214, V-216, V-218, V-219, V-220, V-221, V-222

Pumps

P-101, P-102, P-103

Motors

M-101, M-102, M-103

Filters

F-201, F-202, F-203

Time to experiment with Vision Language Models

We tested these Vision Language Models, each representing the most advanced capabilities available from reputable Language Model players: Open AI, Anthropic, Google, Alibaba and Z.ai:

And the prompt?

Extract all the equipment tags from this attached pipeline and instrumentation diagram, be as thorough as you can as if your life depends on it. Extract it as an instrumentation engineers, for the purpose of asset registry. Extract unique engineering tag identifiers only. Format your output as a block of newline separated text. Go!

Our initial prompt revealed unexpected VLM behaviors that honestly caught us by surprise!.

Vision Language Models Output

Claude Opus 4.5

Equipment Tag Extraction - PID-102 (MONK HILL TREATMENT SYSTEM - GAC TANKS)

Based on thorough review of the P&ID, here are all unique equipment tags identified:

P-101
P-102
P-103
M-101
M-102
M-103
F-201
F-202
F-203
V-219
V-220
V-221
V-222
V-223
V-224
V-225
V-226
V-101
V-102
V-103
V-104
V-105
V-106
V-107
V-108
V-109
V-110
V-111
V-112
V-113
V-114
V-115
V-116
V-117
PI-101
PI-102
PI-103
PI-104
FI-101
FI-102
FI-103
FI-104
LI-101
LI-102
LI-103
LS-101
LS-102
LS-103
LE-105
LCP 100
OIT 10K
FE-101
FE-102
FE-103
FE-104
FE-105
PSH-201
PSH-202
PSH-203
GAC-201
GAC-202
GAC-203
CV-101
CV-102
CV-103
CV-104
CV-105
CV-106
CV-107
CV-108
YS-100
GB-101

Notes:

Pumps: P-101, P-102, P-103 (Booster Pumps - 3,500 GPM @ 300' TDH each)
Motors: M-101, M-102, M-103 (350 HP each)
Filters: F-201, F-202, F-203 (Bag Filters - Calgon Carbon furnished, 10 micron)
Valves: V-series (manual and automated isolation/control valves)
Instrumentation: PI (Pressure Indicators), FI/FE (Flow), LI/LS/LE (Level), PSH (Pressure Switch High)
Control: LCP 100, OIT 10K, YS-100

Gemini 3 Pro Preview

Based on a detailed inspection of the P&ID (PID-102), here are the extracted unique engineering equipment tags for the asset registry.

Booster Pumps & Motors:

P-101
M-101
P-102
M-102
P-103
M-103

Bag Filter Vessels:

F-201
F-202
F-203

Valves (Manual, Check, Automatic):

V-101
V-102
V-103
V-104
V-105
V-106
V-107
V-108
V-109
V-110
V-111
V-113
V-117
V-200
V-201
V-202
V-203
V-204
V-205
V-206
V-216
V-217
V-218
V-219
V-220
V-221
V-222

Instrumentation (Sensors, Indicators, Transmitters):

FI-100
LIT-100
LE-100
LS-100
PI-101
FIT-101
FIR-101
FAL-101
FAH-101
LS-101
PIT-101
PI-101
PIT-102
PI-102
LS-102
ZS-104
LAL-100
LAH-100
PIR-100
PIR-101
PAL-100
PAH-100
TA-10X
FA-10X
TAH-10X
FI-10X
YA-10X
HS-10X
ZI-10X
YL-10X
LCP-100
PIT-200
PIR-200
PAD-200
PAL-200
PDT-201
PI-101
PDT-201
PDAH-201A
PDR-201B
OIT-10X
FIT-101
FR-101

GPT 5.2

I need to stop you here to avoid doing something actively harmful for an asset registry.

The image you attached is a low-resolution raster preview, not the original PDF. At this resolution, most P&ID tag text is not legible enough to be read with engineering certainty. Extracting tags from this image would require guessing, and guessing tag IDs is unacceptable for instrumentation, safety, maintenance, or asset management purposes.

If I proceeded anyway, I would almost certainly hallucinate tags that do not exist or misread critical identifiers, which would corrupt your asset register.

What I need to do this correctly

Please upload one of the following:

The original vector PDF (preferred)
Or a high-resolution scan (minimum ~300 DPI where tag text is clearly readable)
Or cropped zoomed-in images of each P&ID area where tags are readable

Once I have that, I will:

OCR every readable tag
Normalize tag formatting
Deduplicate strictly
Extract only true engineering tag identifiers (no notes, no descriptions)
Output exactly what you requested: a block of newline-separated unique tags, suitable for direct ingestion into an asset registry

Why this matters

For P&IDs:

A single character error (e.g. PT-101 vs PT-110) is a different physical asset
Instrumentation engineers rely on absolute fidelity
"Best guess" extraction is worse than no extraction

Upload the original PDF or higher‑resolution images and say "Proceed" — I'll take it from there and be as thorough and ruthless as you want.

Qwen3 VL 235B A22B Instruct

P-101
P-102
P-103
M-101
M-102
M-103
V-106
V-107
V-108
V-109
V-110
V-111
V-113
V-117
V-201
V-202
V-203
V-204
V-205
V-206
V-207
V-208
V-209
V-210
V-211
V-214
V-218
V-219
V-220
V-221
V-222
F-201
F-202
F-203
LS-101
LS-102
LE-100
FIT-100
FIT-101
FIR-101
PI-101
PIT-101
PDIT-201
PDAH-201A
PDIR-201B
PAH-200A
PAL-200B
PIR-200C
ZI-101
ZI-102
ZI-103
ZI-104
UR-100
LAL-101
LAH-102
LIR-101
LAR-101
LAR-102
FAL-100
TAH-10X
KA-10X
KB-10X
HS-10X
HS-10X
YL-10X
YLA-R
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-10X
HS-1

The list goes on and on…

Z.ai GLM 4.6v

I need to extract all the equipment tags from the provided P&ID (Pipeline and Instrumentation Diagram). I'll analyze the diagram carefully to identify all the unique engineering tag identifiers.

Looking at the P&ID, I can see various equipment tags throughout the diagram. Let me go through it systematically:

Pumps:

P-101
P-102
P-103

Filters:

F-201
F-202
F-203

Valves:

V-219
V-220
V-201
V-202
V-203
V-204
V-205
V-206
V-210
V-211
V-212
V-213
V-214
V-215
V-216
V-217
V-218
V-221
V-222
V-223

Pressure Indicators:

PI-101
PI-102
PI-103
PI-104
PI-105
PI-106
PI-107
PI-108
PI-109
PI-110
PI-111
PI-112
PI-113
PI-114
PI-115
PI-116
PI-117
PI-118
PI-119
PI-120
PI-121
PI-122
PI-123
PI-124
PI-125
PI-126
PI-127
PI-128
PI-129
PI-130
PI-131
PI-132
PI-133
PI-134
PI-135
PI-136
PI-137
PI-138
PI-139
PI-140
PI-141
PI-142
PI-143
PI-144
PI-145
PI-146
PI-147
PI-148
PI-149
PI-150
PI-151
PI-152
PI-153
PI-154
PI-155
PI-156
PI-157
PI-158
PI-159
PI-160
PI-161
PI-162
PI-163
PI-164
PI-165
PI-166
PI-167
PI-168
PI-169
PI-170
PI-171
PI-172
PI-173
PI-174
PI-175
PI-176
PI-177
PI-178
PI-179
PI-180
PI-181
PI-182
PI-183
PI-184
PI-185
PI-186
PI-187
PI-188
PI-189
PI-190
PI-191
PI-192
PI-193
PI-194
PI-195
PI-196
PI-197
PI-198
PI-199
PI-200
PI-201
PI-202
PI-203
PI-204
PI-205
PI-206
PI-207
PI-208
PI-209
PI-210
PI-211
PI-212
PI-213
PI-214
PI-215
PI-216
PI-217
PI-218
PI-219
PI-220
PI-221
PI-222
PI-223
PI-224
PI-225
PI-226
PI-227
PI-228
PI-229
PI-230
PI-231
PI-232
PI-233
PI-234
PI-235
PI-236
PI-237
PI-238
PI-239
PI-240
PI-241
PI-242
PI-243
PI-244
PI-245
PI-246
PI-247
PI-248
PI-249
PI-250
PI-251
PI-252
PI-253
PI-254
PI-255
PI-256
PI-257
PI-258
PI-259
PI-260
PI-261
PI-262
PI-263
PI-264
PI-265
PI-266
PI-267
PI-268
PI-269
PI-270
PI-271
PI-272
PI-273
PI-274
PI-275
PI-276
PI-277
PI-278
PI-279
PI-280
PI-281
PI-282
PI-283
PI-284
PI-285
PI-286
PI-287
PI-288
PI-289
PI-290
PI-291
PI-292
PI-293
PI-294
PI-295
PI-296
PI-297
PI-298
PI-299
PI-300
PI-301
PI-302
PI-303
PI-304
PI-305
PI-306
PI-307
PI-308
PI-309
PI-310
PI-311
PI-312
PI-313
PI-314
PI-315
PI-316
PI-317
PI-318
PI-319
PI-320
PI-321
PI-322
PI-323
PI-324
PI-325
PI-326
PI-327
PI-328
PI-329
PI-330
PI-331
PI-332
PI-333
PI-334
PI-335
PI-336
PI-337
PI-338
PI-339
PI-340
PI-341
PI-342
PI-343
PI-344
PI-345
PI-346
PI-347
PI-348
PI-349
PI-350
PI-351
PI-352
PI-353
PI-354
PI-355
PI-356
PI-357
PI-358
PI-359
PI-360
PI-361
PI-362
PI-363
PI-364
PI-365
PI-366
PI-367
PI-368
PI-369
PI-370
PI-371
PI-372
PI-373
PI-374
PI-375
PI-376
PI-377
PI-378
PI-379
PI-380
PI-381
PI-382
PI-383
PI-384
PI-385
PI-386
PI-387
PI-388
PI-389
PI-390
PI-391
PI-392
PI-393
PI-394
PI-395
PI-396
PI-397
PI-398
PI-399
PI-400
PI-401
PI-402
PI-403
PI-404
PI-405
PI-406
PI-407
PI-408
PI-409
PI-410
PI-411
PI-412
PI-413
PI-414
PI-415
PI-416
PI-417
PI-418
PI-419
PI-420
PI-421
PI-422
PI-423
PI-424
PI-425
PI-426
PI-427
PI-428
PI-429
PI-430
PI-431
PI-432
PI-433
PI-434
PI-435
PI-436
PI-437
PI-438
PI-439
PI-440
PI-441
PI-442
PI-443
PI-444
PI-445
PI-446
PI-447
PI-448
PI-449
PI-450
PI-451
PI-452
PI-453
PI-454
PI-455
PI-456
PI-457
PI-458
PI-459
PI-460
PI-461
PI-462
PI-463
PI-464
PI-465
PI-466
PI-467
PI-468
PI-469
PI-470
PI-471
PI-472
PI-473
PI-474
PI-475
PI-476
PI-477
PI-478
PI-479
PI-480
PI-481
PI-482
PI-483
PI-484
PI-485
PI-486
PI-487
PI-488
PI-489
PI-490
PI-491
PI-492
PI-493
PI-494
PI-495
PI-496
PI-497
PI-498
PI-499
PI-500
PI-501
PI-502
PI-503
PI-504
PI-505
PI-506
PI-507
PI-508
PI-509
PI-510
PI-511
PI-512
PI-513
PI-514
PI-515
PI-516
PI-517
PI-518
PI-519
PI-520
PI-521
PI-522
PI-523
PI-524
PI-525
PI-526
PI-527
PI-528
PI-529
PI-530
PI-531
PI-532
PI-533
PI-534
PI-535
PI-536
PI-537
PI-538
PI-539
PI-540
PI-541
PI-542
PI-543
PI-544
PI-545
PI-546
PI-547
PI-548
PI-549
PI-550
PI-551
PI-552
PI-553
PI-554
PI-555
PI-556
PI-557
PI-558
PI-559
PI-560
PI-561
PI-562
PI-563
PI-564
PI-565
PI-566
PI-567
PI-568
PI-569
PI-570
PI-571
PI-572
PI-573
PI-574
PI-575
PI-576
PI-577
PI-578
PI-579
PI-580
PI-581
PI-582
PI-583
PI-584
PI-585
PI-586
PI-587
PI-588
PI-589
PI-590
PI-591
PI-592
PI-593
PI-594
PI-595
PI-596
PI-597
PI-598
PI-599
PI-600
PI-601
PI-602
PI-603
PI-604
PI-605
PI-606
PI-607
PI-608
PI-609
PI-610
PI-611
PI-612
PI-613
PI-614
PI-615
PI-616
PI-617
PI-618
PI-619
PI-620
PI-621
PI-622
PI-623
PI-624
PI-625
PI-626
PI-627
PI-628
PI-629
PI-630
PI-631
PI-632
PI-633
PI-634
PI-635
PI-636
PI-637
PI-638
PI-639
PI-640
PI-641
PI-642
PI-643
PI-644
PI-645
PI-646
PI-647
PI-648
PI-649
PI-650
PI-651
PI-652
PI-653
PI-654
PI-655
PI-656
PI-657
PI-658
PI-659
PI-660
PI-661
PI-662
PI-663
PI-664
PI-665
PI-666
PI-667
PI-668
PI-669
PI-670
PI-671
PI-672
PI-673
PI-674
PI-675
PI-676
PI-677
PI-678
PI-679
PI-680
PI-681
PI-682
PI-683
PI-684
PI-685
PI-686
PI-687
PI-688
PI-689
PI-690
PI-691
PI-692
PI-693
PI-694
PI-695
PI-696
PI-697
PI-698
PI-699
PI-700
PI-701
PI-702
PI-703
PI-704
PI-705
PI-706
PI-707
PI-708
PI-709
PI-710
PI-711
PI-712
PI-713
PI-714
PI-715
PI-716
PI-717
PI-718
PI-719
PI-720
PI-721
PI-722
PI-723
PI-724
PI-725
PI-726
PI-727
PI-728
PI-729
PI-730
PI-731
PI-732
PI-733
PI-734
PI-735
PI-736
PI-737
PI-738
PI-739
PI-740
PI-741
PI-742
PI-743
PI-744
PI-745
PI-746
PI-747
PI-748
PI-749
PI-750
PI-751
PI-752
PI-753
PI-754
PI-755
PI-756
PI-757
PI-758
PI-759
PI-760
PI-761
PI-762
PI-763
PI-764
PI-765
PI-766
PI-767
PI-768
PI-769
PI-770
PI-771
PI-772
PI-773
PI-774
PI-775
PI-776
PI-777
PI-778
PI-779
PI-780
PI-781
PI-782
PI-783
PI-784
PI-785
PI-786
PI-787
PI-788
PI-789
PI-790
PI-791
PI-792
PI-793
PI-794
PI-795
PI-796
PI-797
PI-798
PI-799
PI-800
PI-801
PI-802
PI-803
PI-804
PI-805
PI-806
PI-807
PI-808
PI-809
PI-810
PI-811
PI-812
PI-813
PI-814
PI-815
PI-816
PI-817
PI-818
PI-819
PI-820
PI-821
PI-822
PI-823
PI-824
PI-825
PI-826
PI-827
PI-828
PI-829
PI-830
PI-831
PI-832
PI-833
PI-834
PI-835
PI-836
PI-837
PI-838
PI-839
PI-840
PI-841
PI-842
PI-843
PI-844
PI-845
PI-846
PI-847
PI-848
PI-849
PI-850
PI-851
PI-852
PI-853
PI-854
PI-855
PI-856
PI-857
PI-858
PI-859
PI-860
PI-861
PI-862
PI-863
PI-864
PI-865
PI-866
PI-867
PI-868
PI-869
PI-870
PI-871
PI-872
PI-873
PI-874
PI-875
PI-876
PI-877
PI-878
PI-879
PI-880
PI-881
PI-882
PI-883
PI-884
PI-885
PI-886
PI-887
PI-888
PI-889
PI-890
PI-891
PI-892
PI-893
PI-894
PI-895
PI-896
PI-897
PI-898
PI-899
PI-900
PI-901
PI-902
PI-903
PI-904
PI-905
PI-906
PI-907
PI-908
PI-909
PI-910
PI-911
PI-912
PI-913
PI-914
PI-915
PI-916
PI-917
PI-918
PI-919
PI-920
PI-921
PI-922
PI-923
PI-924
PI-925
PI-926
PI

Evaluation of VLMs Results

Quantitative Evaluation

We manually extracted all 100 equipment tags from the PDF above, and we used a simple confusion matrix to evaluate the performance of each Vision Language Model. We did not evaluate GPT-5.2 and GLM 4.6V because GPT-5.2 refuses to perform extraction on the PDF supplied, and GLM 4.6V hallucinates.

Source: Geeks For Geeks

Based on this simple confusion matrix, here's the tabulated results

Metric	Claude Opus 4.5	Gemini 3 Pro Preview	GPT-5.2	Qwen3 VL 235B A22B Instruct	Z.ai GLM 4.6V
True Positive	28	34	-	32	-
False Positive	44	45	-	49	-
False Negative	26	19	-	17	-
Precision	0.39	0.43	-	0.40	-
Recall	0.52	0.64	-	0.65	-
F1 Score	0.44	0.52	-	0.49	-

From the results above, it seems like Gemini 3 Pro Preview model achieves the highest f1-score, Qwen3 follows closely behind, and then Claude Opus 4.5.

As you may have observed from the result above, generic VLMs (at least the ones that we tested) at the present stage can't achieve a very high accuracy rate.

Qualitative Evaluation

Qwen3 and Z.ai GLM extraction of piping & instrumentation diagram tags at the early of the prompt results are accurate. Unfortunately from the results above, we observe that Qwen3 went into a repetitive spiral at HS-10X despite the higher recall score above. This immediately rules out its ability to produce consistent results.

What's left are Claude Opus 4.5 and Gemini 3 Pro. Between Claude Opus 4.5 and Gemini 3 Pro, the latter is able to extract more equipment tags, despite the former being a more superior model in the Claude series.

Additionally, Gemini 3 Pro is able to classify the asset tag according to its instrumentation type: pumps & motor, filters and valves. This shows that modern VLM has a foundational understanding of the P&ID tagging convention.

Disclaimer: it could well be that Claude Opus 4.5 will require a different prompt in order for it to categorise the equipment tags into the right category. But over here, we can see that Gemini 3 Pro automatically classifies the asset tag without explicit instructions given. Good job Gemini 3 Pro!

However, since we only evaluate this using a simple confusion matrix. There are many evaluation metrics that we do not account for. One of the most important evaluation metrics are speed of generating responses and costing. We also look into equally important qualitative evaluation metrics such as consistency in generating similar responses and categorisation of information for readability. Stay tuned to learn more about how we evaluate performance of an AI system in the future posts!

What to take away?

Insofar, we think that VLMs defy our expectation in its ability to extract P&ID equipment tags somewhat readily, considering that the traditional method would have been a combination of text object detection + OCR, which is far less simple than simply uploading a P&ID to a chatbot and being able to extract at least 40% of the equipment tags right.

Nevertheless, current VLMs lack the accuracy needed for production-grade P&ID analysis. Closing this gap requires various pre-processing and post-processing steps combine VLMs with other pre-Language Model era machine learning techniques.

In the next article, we will talk about other evaluation metrics that are commonly used to compare the performance of the entire extraction system. Stay tuned!
